Problème de connexion - Connection problem
Goto page: 1, 2  >

Post new topic   Reply to topic    JPDiag Forum Index -> JPDiag -> M3C / Mitsu ecus
Previous topic :: Next topic
Author Message
#Fede974
Map

Offline

Joined: 20 Apr 2016
Posts: 6
Localisation: Gênes, Italie
Masculin Balance (23sep-22oct)
Bike / Moto: Ducati Monster 1100

PostPosted: Tue 25 Jul - 22:40 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

Bonjour à tous,
Je demande votre aide pour un problème de connexion entre ma moto et mon ordinateur.
J'ai un Monster 1100 MY2009 avec Siemens ECU, Windows 7 Home et j'utilise le logiciel M3C9 avec les câbles suivants:



KKMOON OBDII V1.5





LONELEC DUCATI 4 PIN DDA TO 16 PIN OBDII





Ici le capture d'ecrain que je reçois avec le OBDII en connexion sur COM1 (même réglage sur le logiciel, COM1 @ 38400 bps)





La ligne bleue augmente et diminue, mais je n'ai pas des données par l'ECU, même avec le bouton Copy.
Désolé si j'ai écrit des choses mauvaises, je commence juste maintenant à comprendre tout cela et je vous remercie pour l'aide!


**********************
Hello,
I need some help for a connection problem between my bike and my computer.
I have a Monster 1100 MY2009 with Siemens ECU, Windows 7 Home and I use the M3C9 software with the following cables:


KKMOON OBDII V1.5


LONELEC DUCATI 4 PIN DDA TO 16 PIN OBDII


Here a screen capture that I receive with the OBDII in connection on COM1 (same setting on the software, COM1 @ 38400 bps)


The blue line increases and decreases, but I do not have any data from the ECU, even with the Copy button.
Sorry if I wrote bad things, I just begin to understand all this and thank you for the help!





Federico
_________________
#Fede974


Back to top
Publicité






PostPosted: Tue 25 Jul - 22:40 (2017)    Post subject: Publicité

PublicitéSupprimer les publicités ?
Back to top
jpl250rs
Administrateur

Offline

Joined: 05 Jun 2010
Posts: 10,219
Masculin
Bike / Moto: 899

PostPosted: Wed 26 Jul - 13:49 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

as tu essayé melcodiag ?
il ne fonctionnera pas avec ton ecu , mais il te dira si ton elm est compatible quand tu essayeras de te connecter


Back to top
MSN
#Fede974
Map

Offline

Joined: 20 Apr 2016
Posts: 6
Localisation: Gênes, Italie
Masculin Balance (23sep-22oct)
Bike / Moto: Ducati Monster 1100

PostPosted: Wed 26 Jul - 14:13 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

No, pas encore...peut être donc que le câble ELM c’est pas compatible en effet.
J'ai vu (capture d'ecrain) ELMv1.5 et je croyais qu'il allât bien.
J'essaie à l'installer, merci du conseil!


_________________
#Fede974


Back to top
#Fede974
Map

Offline

Joined: 20 Apr 2016
Posts: 6
Localisation: Gênes, Italie
Masculin Balance (23sep-22oct)
Bike / Moto: Ducati Monster 1100

PostPosted: Thu 27 Jul - 19:17 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

Salut jpl250rs,
j'ai essayée avec le MelcoDiag, ici la photo du logiciel pendant la connection





et le LOG generé.


***********************
"File generated On 27/07/2017 19:50:11"


"Bike = Monster 1100 2009"


"Bike = "
"Ecu = "
"Hardw =
"
"Softw = A"
"OilService = NO"
"DesmoService = NO"


"PID 18 = OK"
"PID 80 = OK"
"PID 100 = OK"
"PID 210 = OK"
"PID 300 = OK"
"Vin = "
"DTC = "

******************************


L'ai d'abord essayé de verifier le connecteur DDA sur la moto et il est bon, il y a 12V entre PIN1 e PIN2, les autres je ne sais pas comment le controller, donc je ne sais rien vers l'ECU...





Bon, c'est tout, je ne sais quoi faire!!! Smile


Merci encore, salut!


_________________
#Fede974


Back to top
jpl250rs
Administrateur

Offline

Joined: 05 Jun 2010
Posts: 10,219
Masculin
Bike / Moto: 899

PostPosted: Thu 27 Jul - 19:47 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

ta version de melcodiag est trop vielle.
il te faut telecharger la nouvelle et refaire ce test
pour le cablage , tu l'a dans les postits http://jpdiag.xooit.eu/t4577-Diagnostic-ELM-Wiring.htm


Back to top
MSN
#Fede974
Map

Offline

Joined: 20 Apr 2016
Posts: 6
Localisation: Gênes, Italie
Masculin Balance (23sep-22oct)
Bike / Moto: Ducati Monster 1100

PostPosted: Tue 1 Aug - 09:08 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

jpl250rs,
Merci de ta reponse. J'ai essayé de la trouver...est ce que tu peux me donner le link pour telecharger la nouvelle versione de Melcodiag?
Merci d'avance.
Salut
_________________
#Fede974


Back to top
jpl250rs
Administrateur

Offline

Joined: 05 Jun 2010
Posts: 10,219
Masculin
Bike / Moto: 899

PostPosted: Tue 1 Aug - 09:17 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

http://jpdiag.akress.com

Back to top
MSN
#Fede974
Map

Offline

Joined: 20 Apr 2016
Posts: 6
Localisation: Gênes, Italie
Masculin Balance (23sep-22oct)
Bike / Moto: Ducati Monster 1100

PostPosted: Tue 1 Aug - 09:25 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

Ok, merci encore...
j'avais trouvé ici celui-ci mais je pensais que ce fût un autre logiciel...
Pardon et merci encore.
Salut
_________________
#Fede974


Back to top
GuzMotoracing
Map

Offline

Joined: 16 Mar 2016
Posts: 14
Localisation: Brazil
Masculin Sagittaire (22nov-21déc)

PostPosted: Fri 10 Nov - 17:45 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

Hello jpl250rs,

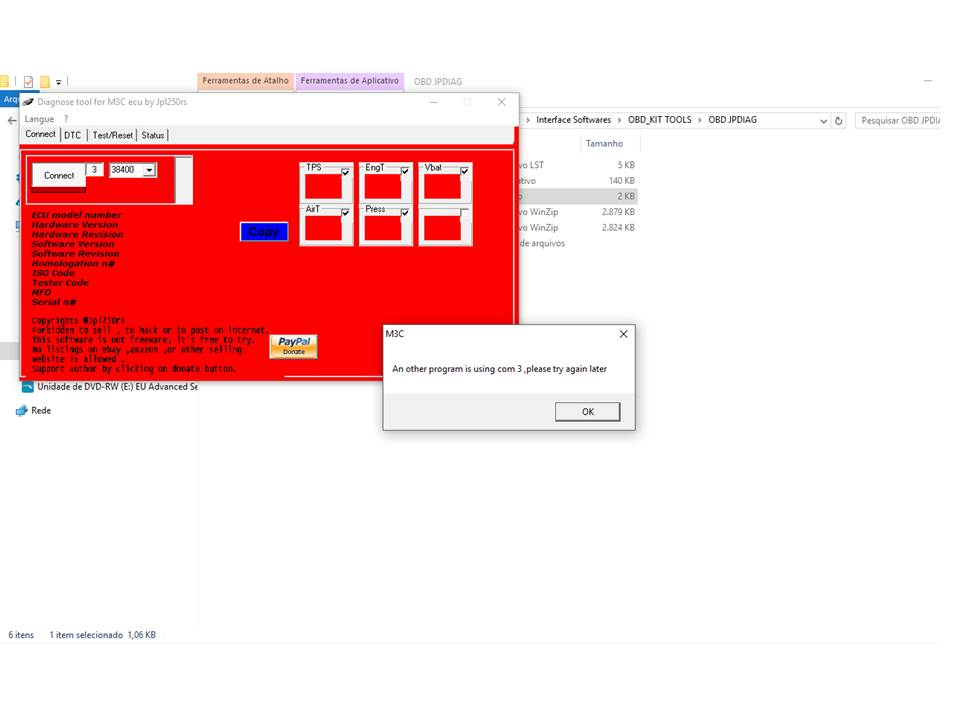

Long time no talk. How are you? Hey, I got a check engine light and the Hypermotard EVO SP 1100 started to run in 1 cylinder only. I'm trying to connect using "M3C9c" with my Bluetooth OBDII ELM327 as I always did, but I'm receiving a message saying that: "COMM 3 is being used by another program, please come back later"  Embarassed


Could you please support me, how can I get the connection again? I changed all com ports and for a Bluetooth connection I have (paired).



_________________
Don't ask what I'm able to do! Just give me the mission!


Back to top
Visit poster’s website
Derek
Map

Offline

Joined: 25 Aug 2010
Posts: 67
Localisation: Scotland
Masculin

PostPosted: Fri 10 Nov - 20:51 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

The problem is with your computer. The easiest fix is to open Device manager, right click on COM Port to open it's properties. Then open the tab for Port settings, click on Advanced and select an available COM port using the Change COM port number option.
There is a way of resetting the COM ports but I can't remember it as I normally use a Mac and I'm not too familiar with Windows OS versions.


Back to top
jpl250rs
Administrateur

Offline

Joined: 05 Jun 2010
Posts: 10,219
Masculin
Bike / Moto: 899

PostPosted: Sat 11 Nov - 00:08 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

yes why are you using the com3 ? have you check it in device manager?

Back to top
MSN
GuzMotoracing
Map

Offline

Joined: 16 Mar 2016
Posts: 14
Localisation: Brazil
Masculin Sagittaire (22nov-21déc)

PostPosted: Mon 13 Nov - 16:13 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

First of all thank you very much for the quick answers and questions. Okay


I just reset all COM PORTS to zero (deleted), re-instaled M3C9 and re-move/re-installed OBDII Bluetooth.




INSTRUCTIONS TO RESET COM PORTS: https://answers.microsoft.com/en-us/windows/forum/windows_7-hardware/re-set-com-ports/e30b07b8-b0e9-4edc-8f44-c172e1053fdc?auth=1


 Derek,
  I fully agree it must be a windows 10 issue and because of that, I feel very uncomfortable to borrow you guys with windows issues. I download a random OBDII SW just to double-check communication and it is working perfectly.


 jpl250rs,
  I did not specifically choose COM3, it was the one working last year and was pre-set already, but now, doesn't matter the value I use, I can not communicate with M3C9. Shocked Exclamation Question Idea
  (I only Have JetPrime and OxyMett talking to ECU).


Video from last year..

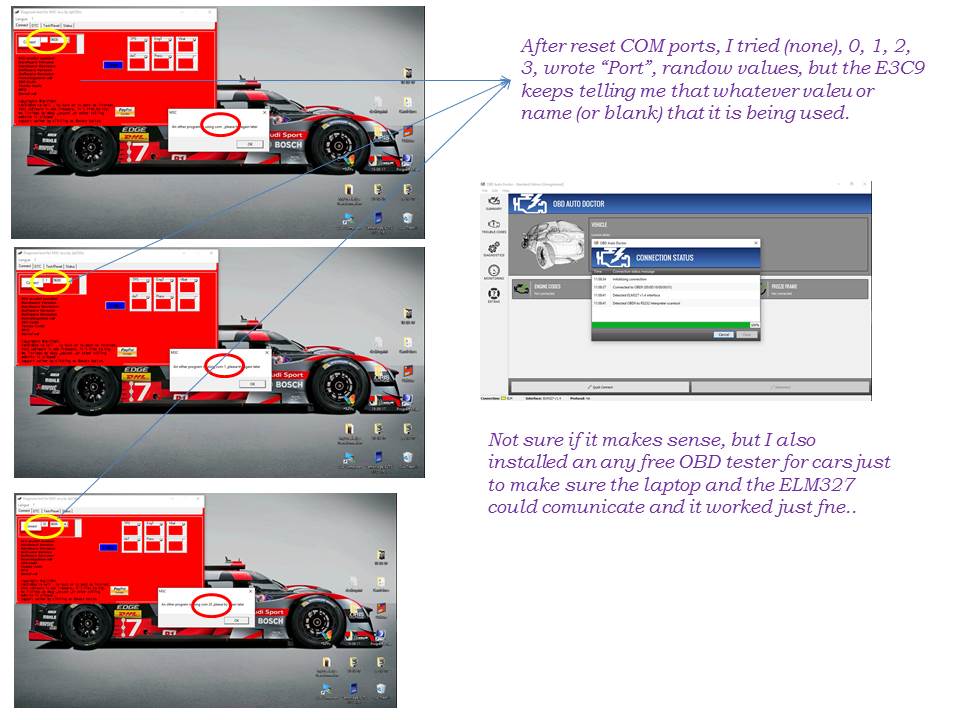

Today's picture 1 and 2









_________________
Don't ask what I'm able to do! Just give me the mission!


Last edited by GuzMotoracing on Mon 13 Nov - 16:36 (2017); edited 1 time in total
Back to top
Visit poster’s website
GuzMotoracing
Map

Offline

Joined: 16 Mar 2016
Posts: 14
Localisation: Brazil
Masculin Sagittaire (22nov-21déc)

PostPosted: Mon 13 Nov - 16:27 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

ohh. sorry.. just in case also..

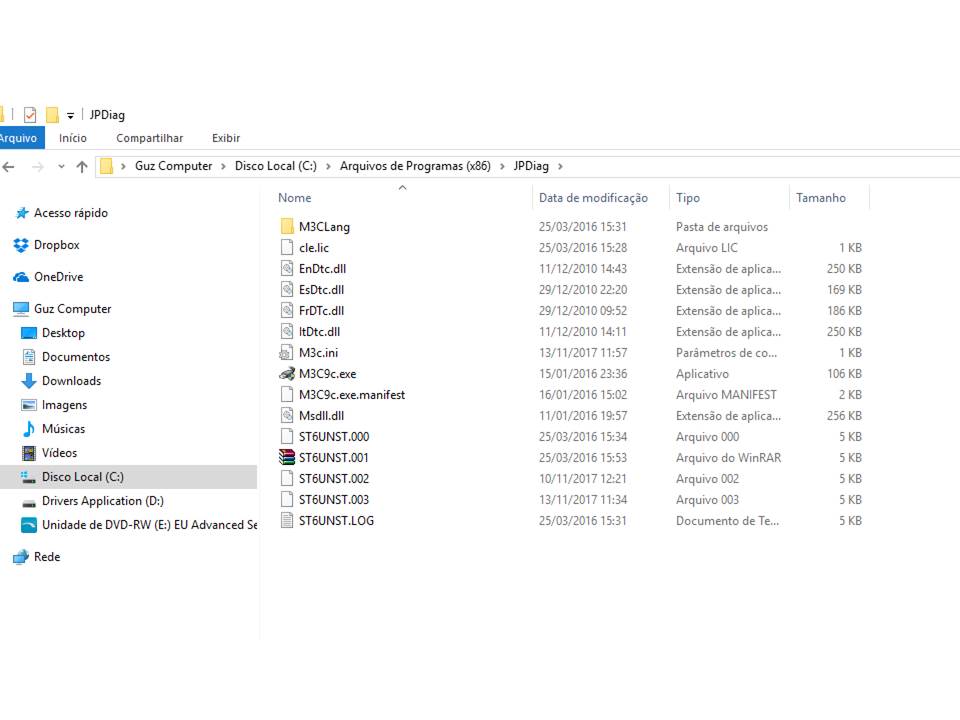

those are the file I have on the data directory

_________________
Don't ask what I'm able to do! Just give me the mission!


Back to top
Visit poster’s website
jpl250rs
Administrateur

Offline

Joined: 05 Jun 2010
Posts: 10,219
Masculin
Bike / Moto: 899

PostPosted: Mon 13 Nov - 20:55 (2017)    Post subject: Problème de connexion - Connection problem Reply with quote

comport value , cannot be random ,
you have to check which one to use in device manager.
it may have change since last year


Back to top
MSN
GuzMotoracing
Map

Offline

Joined: 16 Mar 2016
Posts: 14
Localisation: Brazil
Masculin Sagittaire (22nov-21déc)

PostPosted: Fri 2 Feb - 23:21 (2018)    Post subject: Problème de connexion - Connection problem Reply with quote

Here we go again, straight from my garage in Rio de Janeiro  Shocked .. Yes, it took me all this days to figure it out how to fix "Windows 10", oh I rate it with all my power.. but, let's move on..

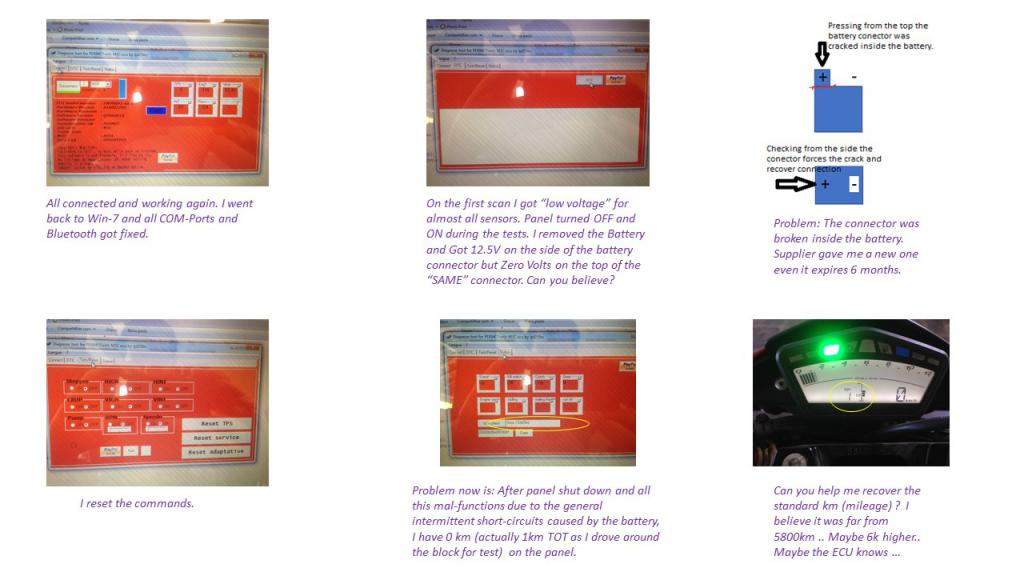

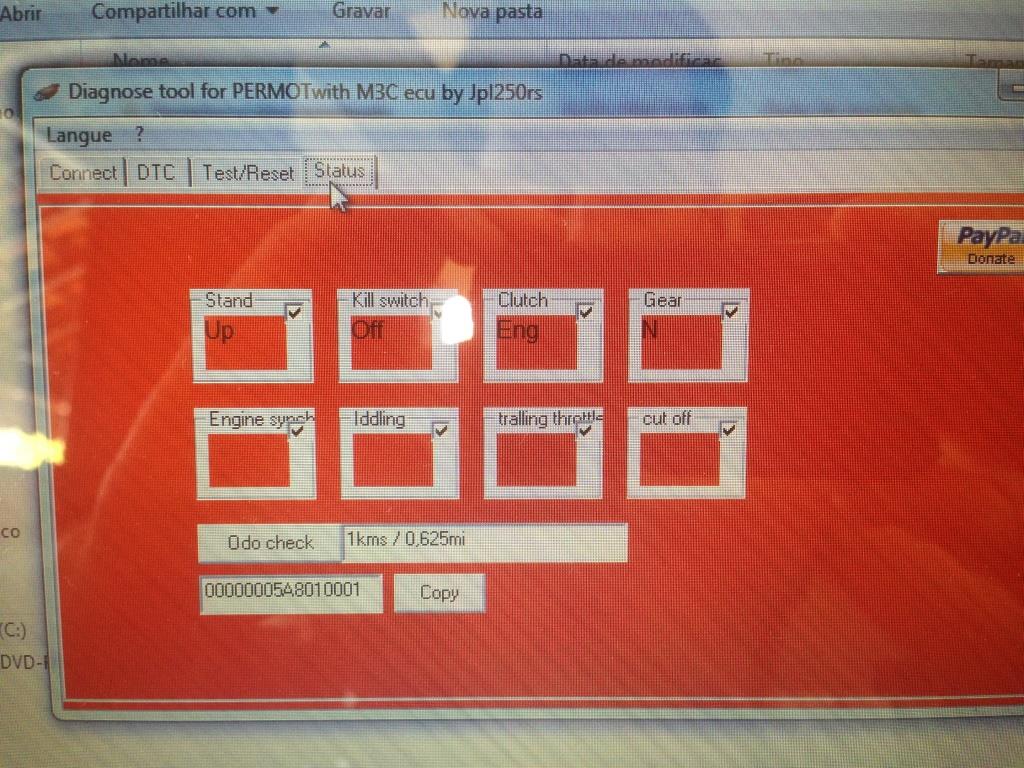

Please have a look at the picture and please let me know if we can re-write the odo to the proper value (it is now 0km) and if we have some updates, like fuel change in the "closed loop" area?








_________________
Don't ask what I'm able to do! Just give me the mission!


Back to top
Visit poster’s website
