PostPosted: Fri 11 May - 15:46 (2018)    Post subject: m3c9 can't connect Reply with quote

Hi,


Chasing help? So I have a 2012 monster 659... Has 3 plugs under the seat... A 2 pin, 3 pin and 4 pin connector... The three pin only has two wires...


I looked up on eBay and all listing's implied for a 12 monster I needed the 4 pin obd2 cable for a Siemens ecu... I also bought an ebay kkl adaptor ..


Have I bought the wrong cable? Did I need a 3 pin job and was ebay wrong about the 4 pin one?


Next query  tried a few different drivers with no success... I get a pass on the cable test but it won't connect... Not sure what I'm doing wrong here? I'm not sure if I should be chasing more drivers or settings or a 3 pin cable for the other plug.. Just can't work out what's wrong...


Cheers,
Tim
_________________
Cheers,
Tim


Back to top
AIM
Publicité






PostPosted: Fri 11 May - 15:46 (2018)    Post subject: Publicité

PublicitéSupprimer les publicités ?
Back to top
jpl250rs
Administrateur

Online

Joined: 05 Jun 2010
Posts: 10,088
Masculin
Bike / Moto: 899

PostPosted: Fri 11 May - 18:19 (2018)    Post subject: m3c9 can't connect Reply with quote

if it's a siemens ,you need to use m3c9 and an elm

Back to top
MSN
TimmyA
Map

Offline

Joined: 23 Apr 2018
Posts: 18
Masculin

PostPosted: Fri 11 May - 22:18 (2018)    Post subject: m3c9 can't connect Reply with quote

Hi,


Ah yes... I found that further down your website now...👍


As a side point  if the 4 pin connector is for Siemens diagnostics, does anyone know what the 3 pin (with 2 Wires) and the 2 pin plugs are for which all break out under the seat too


I have a wifi elm adaptor  will that work at all?


Cheers,
Tim
_________________
Cheers,
Tim


Back to top
AIM
jpl250rs
Administrateur

Online

Joined: 05 Jun 2010
Posts: 10,088
Masculin
Bike / Moto: 899

PostPosted: Sat 12 May - 09:42 (2018)    Post subject: m3c9 can't connect Reply with quote

wifi elm , i don't think it'll work because i need a com port as the bluetooth offer

Back to top
MSN
TimmyA
Map

Offline

Joined: 23 Apr 2018
Posts: 18
Masculin

PostPosted: Thu 17 May - 09:09 (2018)    Post subject: m3c9 can't connect Reply with quote

Hi again,


I have now got myself a wired ELM327 with a genuine FTDI chip in it...


I still cannot get a connection to open, I have downloaded drivers off the FTDI website and received an ELM failed to initialise error...


Any idea what's going wrong here? Mostly likely user error on my part, but I'm a bit stumped...


Also to clarify on 2012 monster 659 bikes, the 4 pin connector does the ECU and dash via canbus, three pin connector goes to the ABS module and I am yet to work out where the 2 pin connector goes to... These first two I found in the wiring diagram, but it doesn't show the 2 pin connector...


Cheers,
Tim
_________________
Cheers,
Tim


Back to top
AIM
jpl250rs
Administrateur

Online

Joined: 05 Jun 2010
Posts: 10,088
Masculin
Bike / Moto: 899

PostPosted: Thu 17 May - 11:07 (2018)    Post subject: m3c9 can't connect Reply with quote

And you are using m3c9 as you have an m3c ecu ?

Back to top
MSN
TimmyA
Map

Offline

Joined: 23 Apr 2018
Posts: 18
Masculin

PostPosted: Thu 17 May - 11:52 (2018)    Post subject: m3c9 can't connect Reply with quote

Hi,


Yep using m3c9 and an m3c ecu... Is it possible im using a wrong drivers still or something? Maybe my wires are crossed in my 4 pin adaptor?


I do appreciate all your help!



_________________
Cheers,
Tim


Back to top
AIM
jpl250rs
Administrateur

Online

Joined: 05 Jun 2010
Posts: 10,088
Masculin
Bike / Moto: 899

PostPosted: Thu 17 May - 16:09 (2018)    Post subject: m3c9 can't connect Reply with quote

do you have hyperterminal or similar software ?

Back to top
MSN
TimmyA
Map

Offline

Joined: 23 Apr 2018
Posts: 18
Masculin

PostPosted: Thu 17 May - 21:15 (2018)    Post subject: m3c9 can't connect Reply with quote

Surely I can download hyperterminal for free from somewhere? So no, but I'll find it if that helps?
_________________
Cheers,
Tim


Back to top
AIM
TimmyA
Map

Offline

Joined: 23 Apr 2018
Posts: 18
Masculin

PostPosted: Fri 18 May - 09:25 (2018)    Post subject: m3c9 can't connect Reply with quote

In case it helps,

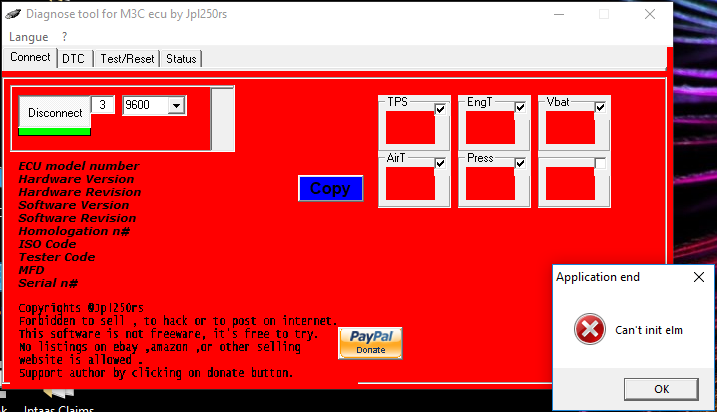

here is the error exactly





_________________
Cheers,
Tim


Back to top
AIM
TimmyA
Map

Offline

Joined: 23 Apr 2018
Posts: 18
Masculin

PostPosted: Fri 18 May - 10:21 (2018)    Post subject: m3c9 can't connect Reply with quote

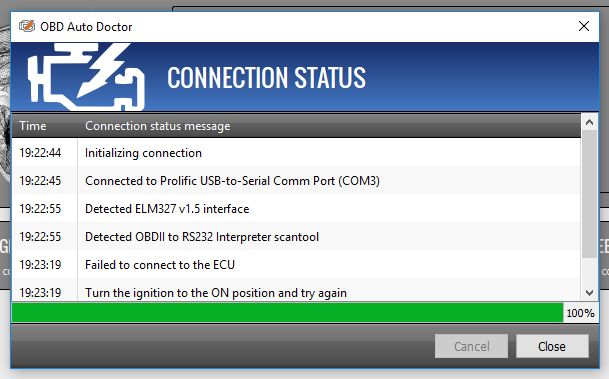

Downloaded some other random OBD2 software and I get a more positive result... Same problem in m3c9 but...



_________________
Cheers,
Tim


Back to top
AIM
jpl250rs
Administrateur

Online

Joined: 05 Jun 2010
Posts: 10,088
Masculin
Bike / Moto: 899

PostPosted: Fri 18 May - 19:24 (2018)    Post subject: m3c9 can't connect Reply with quote

did you try with 38400 speed ?

Back to top
MSN
TimmyA
Map

Offline

Joined: 23 Apr 2018
Posts: 18
Masculin

PostPosted: Fri 18 May - 22:26 (2018)    Post subject: m3c9 can't connect Reply with quote

Yeah tried all three baud rates and matching the vcp to the m3c software
_________________
Cheers,
Tim


Back to top
AIM
jpl250rs
Administrateur

Online

Joined: 05 Jun 2010
Posts: 10,088
Masculin
Bike / Moto: 899

PostPosted: Sat 19 May - 08:13 (2018)    Post subject: m3c9 can't connect Reply with quote

maybe you have to give it admin rights when you launch it

Back to top
MSN
TimmyA
Map

Offline

Joined: 23 Apr 2018
Posts: 18
Masculin

PostPosted: Sat 19 May - 10:16 (2018)    Post subject: m3c9 can't connect Reply with quote

Getting closer!


38400 baud and com port 2 works... Changing from com port 3 seems to have helped for some reason?

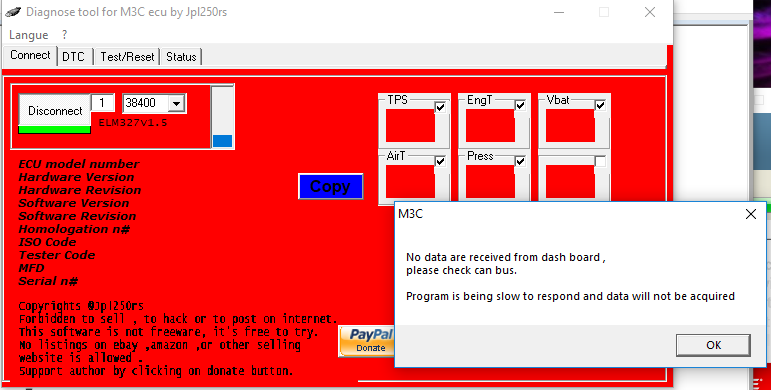

Anyhow now I get this error when I try to connect?


Turns out my ELM327 has a prolific chip and only drivers 3.2.0 seem to work... I tried loads of other drivers on my PC with no luck of a connection... Prolific drivers 3.3.2 and the ELM flashes it's communication lights but the software comes up with the same initialisation error...


So advice on the screenshot? It wont read any info from the ecu to apply for the licence file? I'm thinking it could still be a driver issue?



_________________
